Rubber Injection Molding Machine (Horizontal)

JD-RH horizontal series
Rubber Injection Molding Machine (Horizontal)
BACK

FEATURES

  • Ildeal for the production of natural & synthetic rubber, oil &heat resistant rubber, and reclaimed rubber.
  • High bed structure.
  • JD-250RH PLC equipped with standard PLC controller only.
  • All other JD-RH series machines allow the optional micro-computer controller.

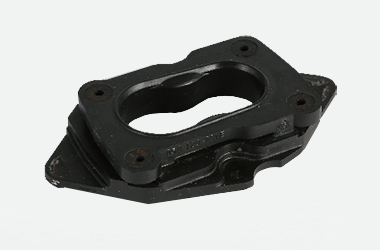

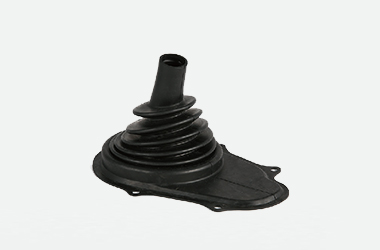

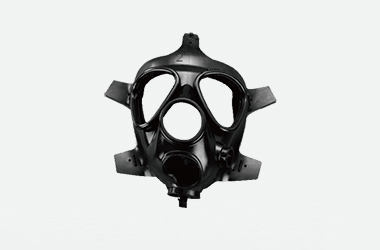

APPLICATIONS
  • Rubber Products for Sport Industry
  • Rubber Products for Automotive
  • Rubber Products for Automotive

SPECIFICATION

MODEL JD-RH65T JD-RH200T JD-RH260T JD-RH300T JD-RH400T JD-RH500T
Shot Volume c.c. 500 1500 1500/2000 2000/3000 3000/4000 4000/5000
Injection Pressure kgf / cm² 1600 1600 1600 1600 1600 1600
Injection Cylinder Pressure kg / cm² 170 170 170 170 170 170/120
Injection rate c.c. / sec 70 100 100 100/165 165 165/170
Screw Diameter mm 25 32 32 32/45 45 45
Strip Dimension (T x W) mm 6 x 30 10 x 60 10 x 60 10 x 60 10 x 60 10 x 60
Clamping Force ton 65 200 260 300 400 500
Plate Size mm 350 x 380 480 x 500 550 x 620 520 x 580
520 x 800
580 x 620 600 x 650 650 x 730 650 x 730 800 x 900 800 x 900
Piston Diameter mm 200 355 400 430 500 560
Piston Stroke mm 380 560 480 560 420 600 600 630 560
Space Between Tie Bar mm 430 x 200 575 x 210 675 x 365 645 x 275 660 x 350 695 x 295 795 x 455 780 x 440 970 x 580 965 x 575
Daylight Max mm 500 650 650 700 800 800
Oil Hydraulic System HP 10 20 20 25 30 40
Hot Oil Cycling Motor kw 0.5*2 0.5*2 0.5*2 0.5*2 0.5*2 0.5*2
Platen Heating Capacity kw 4.8 8 12.6 11.6/16.4 14.4 15 18.2 18.2 31 31
System Pressure kg / cm² 210 210 210 210 210 210
Oil Tank Capacity liters 280 430 430 470 560 560
Machine Dimensions mm 1585 x 2770 x 2280 1635 x 2960 x 2800 1635 x 3030 x 2760 1635 x 3030 x 2900 1635 x 3030 x 2790 1745 x 3090 x 3120 1745 x 3140 x 3140 1885 x 3430 x 3370 2085 x 3500 x 3620 2085 x 3500 x 3570
Machine Weight (Approx) kg 3300 5800 6500 6800 7400 8200 9000 10000 13600 15100
*Dimensions are as standard, subject to change by options or upon custom-made;actual specifications are based on the finished products.
*表內為標配尺寸,會因選配或客製化而有所差異,請以實際為準

MOLD INSTALLATION & HEATING PLATE DIMENSION

MODEL JD-RH65T JD-RH200T JD-RH260T JD-RH300T JD-RH400T JD-RH500T
STROKE / DIMENSION 380 560 480 560 420/560 600 600 600 630 560
A (mm) 350 480 550 520 580 600 650 650 800 800
B (mm) 380 500 620 580 620 650 730 730 900 900
C (mm) 610 800 930 910 930 960 1060 1060 1290 1290
D (mm) 150 200 200 200 200 200 200 200 300 300
E (mm) - - 300 300 400 400 400 400 500 500
F (mm) 90 120 120 135 145 145 145 145 200 200
G (mm) 14 18 18 18 18 18 18 18 18 18
H (mm) 20 25 25 25 25 25 25 25 25 25
I (mm) 10 10 10 10 10 10 10 10 10 10
J (mm) 12 12 12 12 12 12 12 12 12 12
K (mm) 430 575 675 645 660 695 795 780 970 965
L (mm) 200 210 365 275 350 295 455 440 580 575
M (mm) 100 100 100 100 100 120 150 140 140 140
N (mm) 70 86 86 95 95 100 100 100 100 100
O (mm) 390 520 620 580 620 650 720 720 880 865
