C-Frame Rubber Injection Molding Machine
JD-RC series
BACK
FEATURES
- This series is suitable for natural rubber, synthetic rubber, oil resistant, heat resistant rubber and recycled rubber.
- PLC and HMI functional control as standard specification.

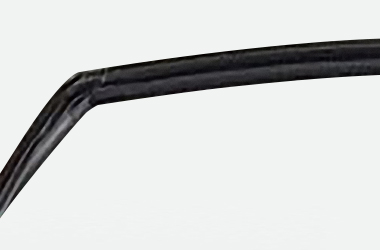

- C-type structure design, for long strip types, such as doors and window sealant strips, insulation barriers, for product manufacturing convenience.
- Specialized nozzle design to prevent material overflow.
- Specialized feeding device.
APPLICATIONS
SPECIFICATION
| MODEL | JD-RC20T | JD-RC30T | JD-RC40T | JD-RC50T | |
|---|---|---|---|---|---|
| Shot Volume | c.c. | 100 | 150 / 300 | 300 | 300 |
| Injection Pressure | kgf / cm² | 1600 | 1000 | 1000 | 1400 |
| Injection Cylinder Pressure | kg / cm² | 160 | 160 | 160 | 160 |
| Injection rate | c.c. / sec | 65 | 105 | 105 | 140 |
| Screw Diameter | mm | 32 | 32 | 32 | 32 |
| Strip Dimension (T x W) | mm | 6 x 30 | 6 x 30 | 6 x 30 | 6 x 30 |
| Clamping Force | Ton | 20 | 30 | 40 | 50 |
| Plate Size | mm | 400 x 400 | 400 x 400 | 400 x 400 | 400 x 400 |
| Piston Diameter | mm | 80 x 2 | 100 x 2 | 120 x 2 | 130 x 2 |
| Piston Stroke | mm | 400 | 400 | 400 | 400 |
| Daylight Max | mm | 400 | 400 | 400 | 400 |
| Oil Hydraulic System | HP | 7.5 | 7.5 | 7.5 | 10.0 |
| Hot Oil Cycling Motor | kw | 0.5 | 0.5 | 0.5 | 0.5 |
| Platen Heating Capacity | kw | 5.8 | 5.8 | 5.8 | 5.8 |
| System Pressure | 210 | 210 | 210 | 210 | kg / cm² |
| Oil Tank Capacity | liters | 200 | 240 | 240 | 280 |
| Machine Dimensions | mm | 1600 x 1420 x 2720 | 1650 x 1420 x 2720 | 1800 x 1420 x 2850 | 1800 x 1620 x 3100 |
| Machine Weight (Approx) | kg | 2500 | 3000 | 4000 | 5000 |
|
*Dimensions are as standard, subject to change by options or upon custom-made；actual specifications are based on the finished products. *表內為標配尺寸，會因選配或客製化而有所差異，請以實際為準 |
|||||
MOLD INSTALLATION & HEATING PLATE DIMENSION
| MODEL | JD-RC20T | JD-RC30T | JD-RC40T | JD-RC50T | |
|---|---|---|---|---|---|
| STROKE \ DIMENSION | 320 | 400 | 400 | 400 | |
| A (mm) | 400 | 400 | 400 | 400 | |
| B (mm) | 400 | 400 | 400 | 400 | |
| C (mm) | 140 | 140 | 140 | 140 | |
| D (mm) | 260 | 260 | 260 | 260 | |
| E (mm) | 14 | 14 | 14 | 14 | |
| F (mm) | 20 | 20 | 20 | 20 | |
| G (mm) | 10 | 10 | 10 | 10 | |
| H (mm) | 10 | 10 | 10 | 10 | |
| I (mm) | 100 | 100 | 100 | 100 | |
| J (mm) | 100 | 100 | 100 | 100 | |
| K (mm) | 450 | 450 | 450 | 450 | |
